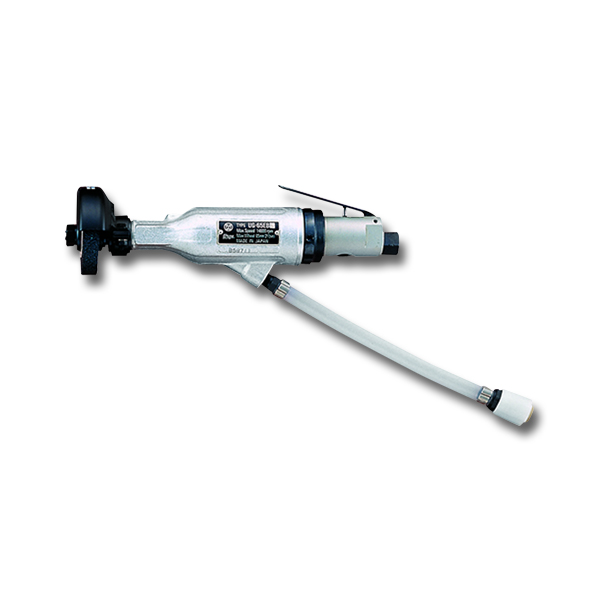

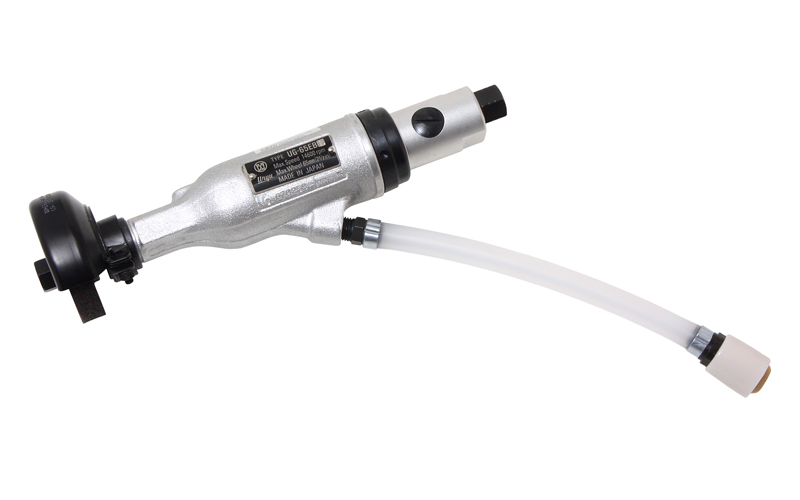

The UG-65EBL from Uryu’s UG-65 Series is a lightweight, high-speed horizontal grinder designed for precision grinding and polishing in metalworking applications. Built for efficiency and durability, this extended model combines compact dimensions with powerful performance, making it ideal for demanding tasks where control and reliability are essential.
Operating at a recommended air pressure of 0.6 MPa (85 psi), the UG-65EBL delivers a maximum free speed of approximately 14,600 rpm, ensuring fast material removal and smooth finishes. Its rated motor output of 412 W provides consistent power for a variety of abrasive operations. The grinder accommodates wheels up to 63.5 mm (2 1/2 in), offering versatility for different grinding and polishing needs.
Despite its robust performance, the UG-65EBL maintains a compact profile with an overall length of about 272 mm (10 23/32 in) and a weight of only 1.40 kg (3.08 lb) without the wheel, reducing operator fatigue during extended use. The tool features a sleeve-type self-closing lever throttle for safety and ease of operation, along with an extended design for improved reach in tight spaces.
Air connectivity is straightforward with an NPT 1/4-inch inlet thread and a recommended hose size of 9.5 mm (3/8 in). Average air consumption is approximately 0.6 m³/min (22 ft³/min), ensuring efficient pneumatic operation. The UG-65EBL also incorporates a rear exhaust system to maintain a cleaner work environment.
Engineered with Uryu’s commitment to quality, the UG-65EBL offers exceptional reliability, ergonomic handling, and high-speed performance for professionals who demand precision and productivity.
