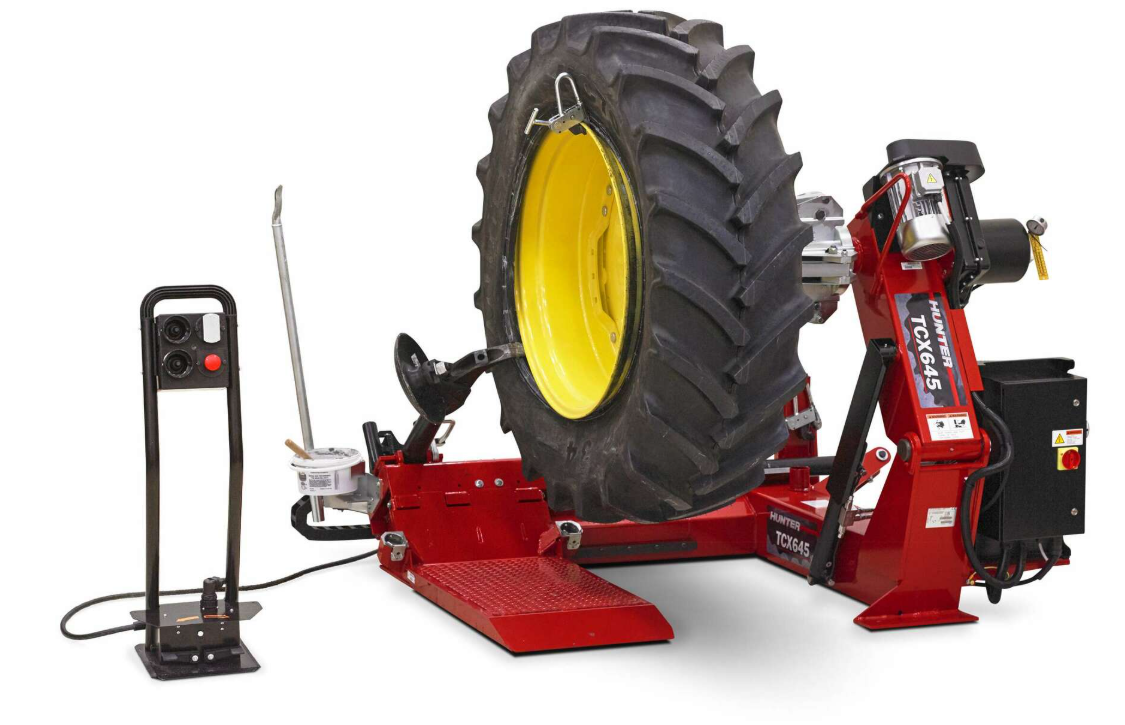

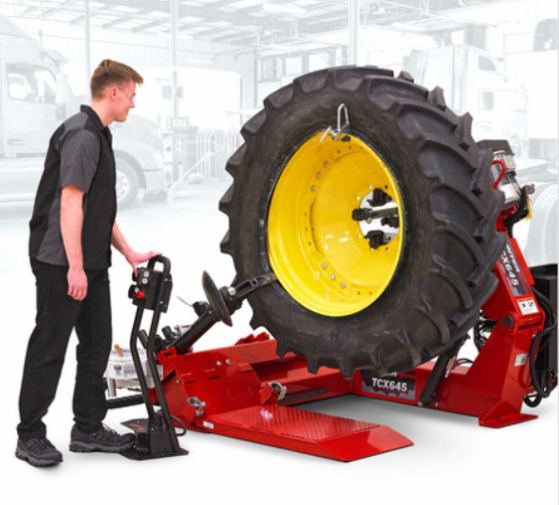

Hunter TCX645HD Heavy-Duty Tire Changer
The Hunter TCX645HD is an advanced heavy-duty tire changer engineered for servicing a wide range of large commercial, agricultural, and industrial wheel assemblies. Designed for trucks, tractors, skidders, and other heavy-equipment applications, the TCX645HD extends beyond over-the-road truck tires to handle extremely large and difficult wheel assemblies with confidence and control.
At the center of the TCX645HD is Hunter’s tulip-style wheel clamp system, which securely grips wheels by the center hole for fast, stable, and damage-free clamping. A hydraulic platform lifts and positions heavy wheel assemblies into the clamp, eliminating manual lifting and significantly improving technician safety. The machine operates with roller-assisted bead loosening and demounting, allowing many tires to be rolled off the rim with minimal tool changes and reduced physical effort. [hunter.com], [hunter.com]
The TCX645HD is equipped with powerful hydraulic systems and dual-speed clamp rotation for precise control during mounting and demounting. Integrated disc and hook tools allow technicians to service tubed, super-single, skidder, and specialty wheel assemblies using the same basic techniques. Optional accessories extend its capabilities even further, including larger clamping capacity, tubeless rollers, a tire cutter for foam-filled tires, and wireless control for improved operator mobility. [hunter.com], [hunter.com]
Built for high-demand environments, the TCX645HD is designed to service wheel assemblies up to 90.5 inches in diameter and up to 42 inches wide, with a maximum assembly weight capacity of up to 2,200 lbs (and higher with certain configurations). This makes it ideal for commercial tire shops, fleet service operations, agricultural dealers, and industrial service facilities that routinely handle oversized or specialty equipment tires.
Key highlights include:
- Designed for trucks, tractors, skidders, and heavy-equipment tires
- Tulip-style center clamp for secure, damage-free clamping
- Hydraulic lift platform to safely position heavy wheel assemblies
- Roller-assisted bead loosening and demounting for efficient workflow
- Dual-speed clamp rotation for controlled, precise operation
- Optional accessories to expand clamping range and service specialty tires
The Hunter TCX645HD is a purpose-built solution for shops that require maximum versatility and power when servicing the largest and most demanding heavy-duty tire assemblies.
Specs:
- 14 - 46 in. rim diameter
- 3.94 in. min rim hole diameter
- 90.5 in. max Diameter
- 42 in. max width
- 2,200 lbs. max weight
- 10 & 5 rpm CW, CCW
- 230V, 3ph, 60Hz, 26A
