Long Description

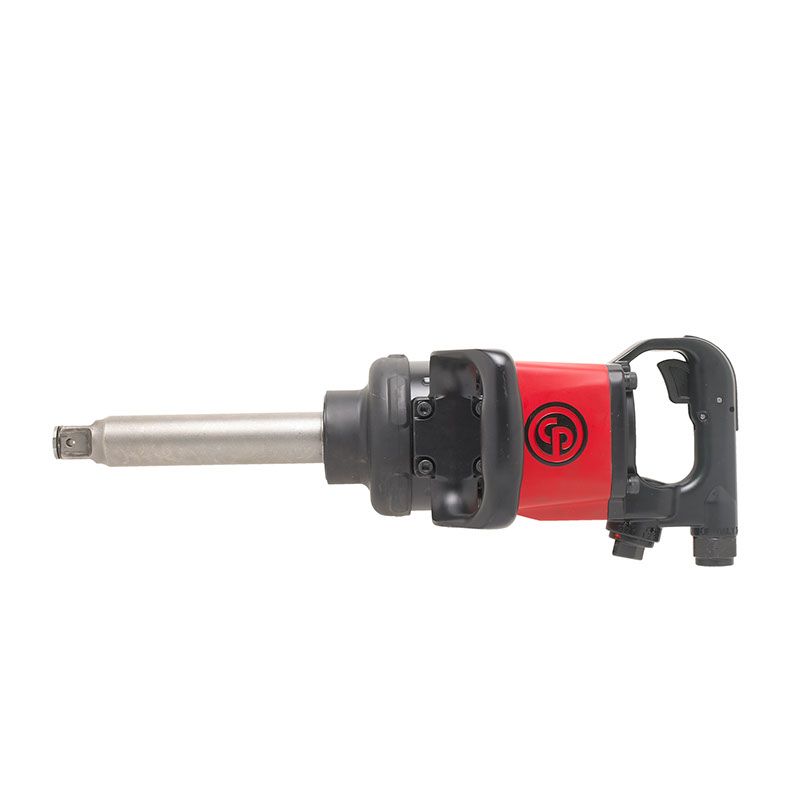

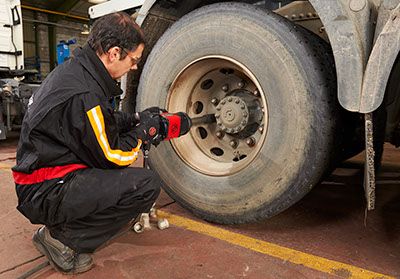

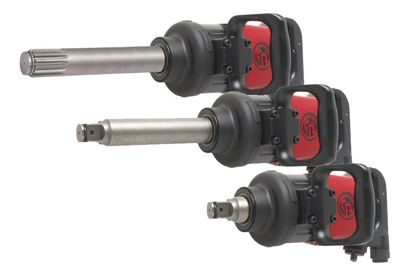

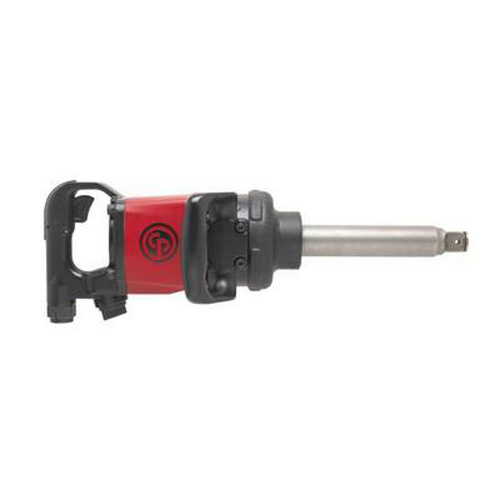

Designed for tire changing applications, this 1" impact wrench with its high torque of 1,920 ft.lbs / 2,600 Nm is highly recommended. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7782 series includes 3 models: 1" short anvil, 1" long anvil (6" anvil) and 1" long anvil (6" anvil) with spline retainer.
Benefits
- 1,920 ft.lbs ( 2,600 Nm) of max torque in reverse position for high productivity
- Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability
- Power control regulators at the rear of the unit with 3 reverse and 3 forward positions
- Integrated protective cover on the clutch housing protects both applications & tool
- Low vibration for improved comfort
Model
7782-6
Configuration
D-Handle
Actuation
Inside Trigger
Drive Size
1 in
Drive Type
Square Hog Ring 6 in Ext
Forward Torque (ft lbs)
1480
Max Reverse Torque (ft lbs)
1920
Blows Per Minute
500
RPM
5200
Weight (lbs)
25.5
Air Inlet (in)
1/2
Min Hose Size (in)
1/2
CFM @ Load
40
Working PSI
90
Manufacturer's Warranty
1 Year
